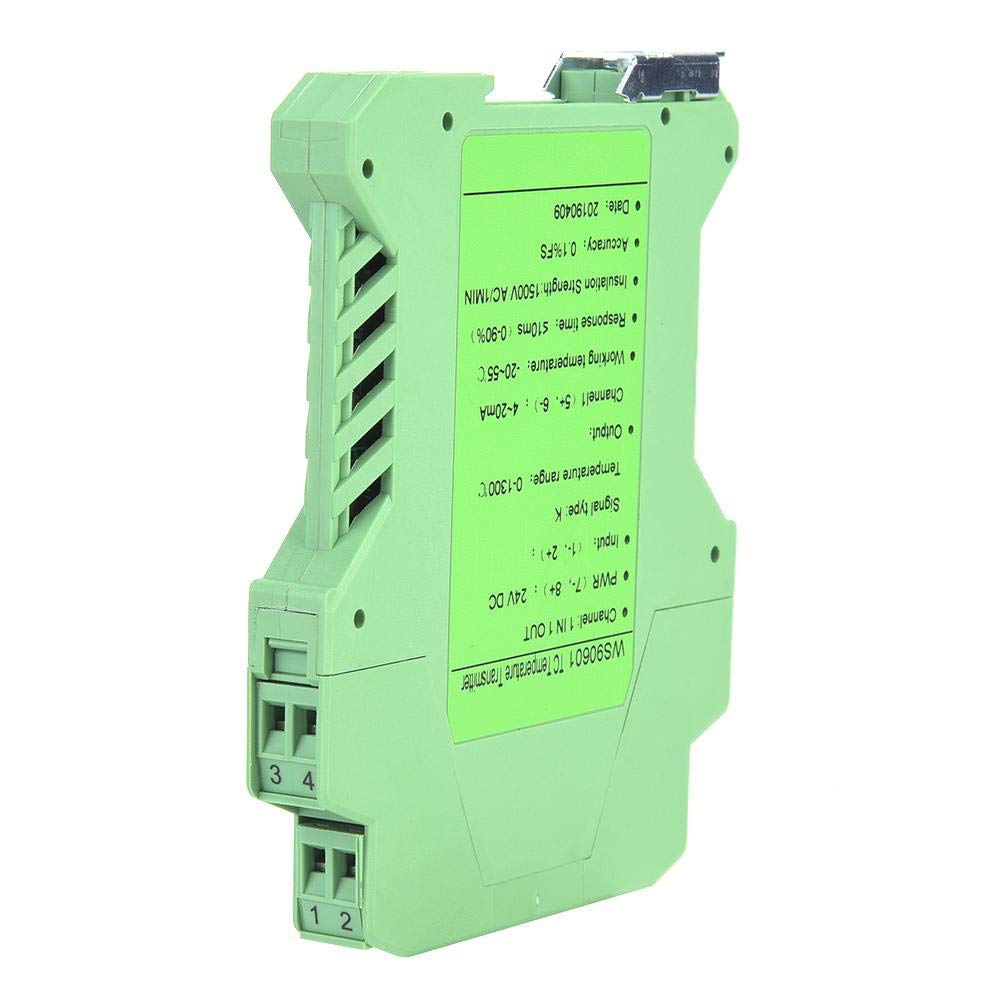

Isolator, 24V 1 Input 1 Output Voltage Current Converter Transmitter for Thermocouple Transmitter, Full Isolation, Anti

Specification: Power supply voltage : 24 (V) ±10% Current consumption: ?70mA Channel configuration: one in one out Input : K type thermocouple (0-1300 ?) Output : 4-20mA 0-10V The output load : RL?500? (the output for the current ); RL?10 K (output voltage ) Operating temperature range: -20? to + 55 ? Size: 100 * 22.5 * 114.5mm / 3.9 * 0.9 * 4.5in Purpose: thermocouple transmitter, full isolation, anti - Applicable equipment: electric Package List: 1 x Isolator

• isolator, stable performance, and
• This isolator provides isolated power distribution power supply for transmitter,meanwhile it isolates and converts the current to control room.
• The input, output and power are isolated from each other by adopting highly efficient magnetoelectric isolation technology interiorly.
• Strong input processing ability, able to accept and process thermocouple, thermal , frequency and other
• Have the advantage of high precision,high linearity and strong anti-interference.
