10-2000N Digital Pull Force Tester, Hand Crank Vertical Tensile Test Bench, with 5 Probes, 2 Testing Clamp, Stroke 270mm, for Compression and Tension Testing

Specification: Name: Desktop Tensile Tester Style: Frame + Digital Display Tester Table Resolution: 10N-100N: 0.01N/0.001kgf/0.001Lb 200N-500N: 0.1N/0.01kgf/0.01Lb 1000N-2000N: 1N/0.1kgf/0.1Lb Load: 10N/20N/50N/100N/200N/500N/1000N/2000N Error: ±0.005 Stroke: 270mm Applicable: Test tension, pressure, tear Frame Specification: 380*250*555mm Accessories: 2 clamps, 5 test heads, 1 extension rod, 1 set of mounting screws

• 【Purpose】The dynamometer can be installed in reverse for tensile or compression tests, 10-2000N, can be selected according to needs, very suitable for testing fishing lines, ropes, wires, buckles, springs, fish hooks, solder joints, rubber bands, etc.

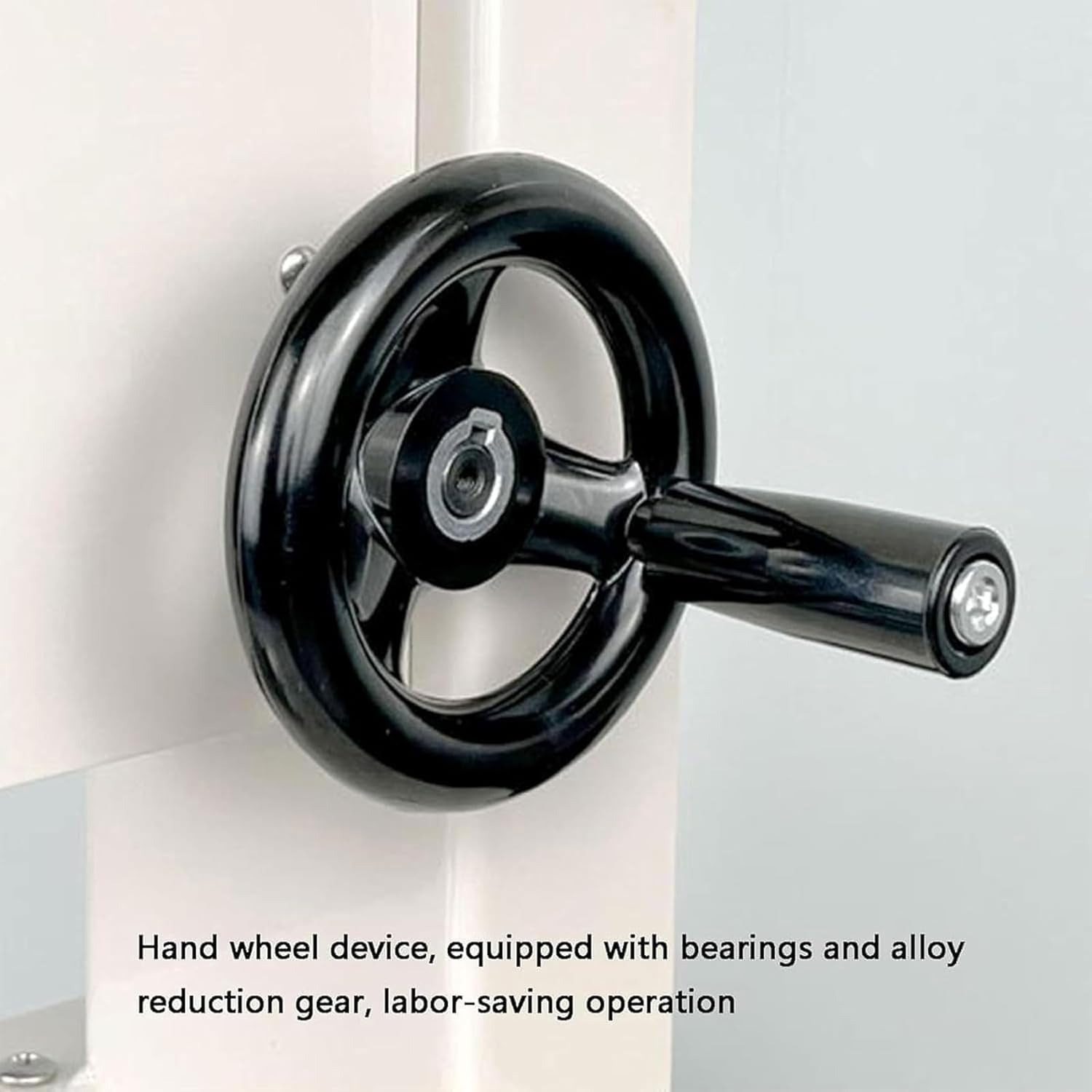

• 【Easy to operate】handwheel device, equipped with bearings and alloy reduction gears, suitable for long-term manual operation. The maximum stroke is 270mm, the clamping position is 0-8mm, the fixation is firm, and the detection effect is more stable

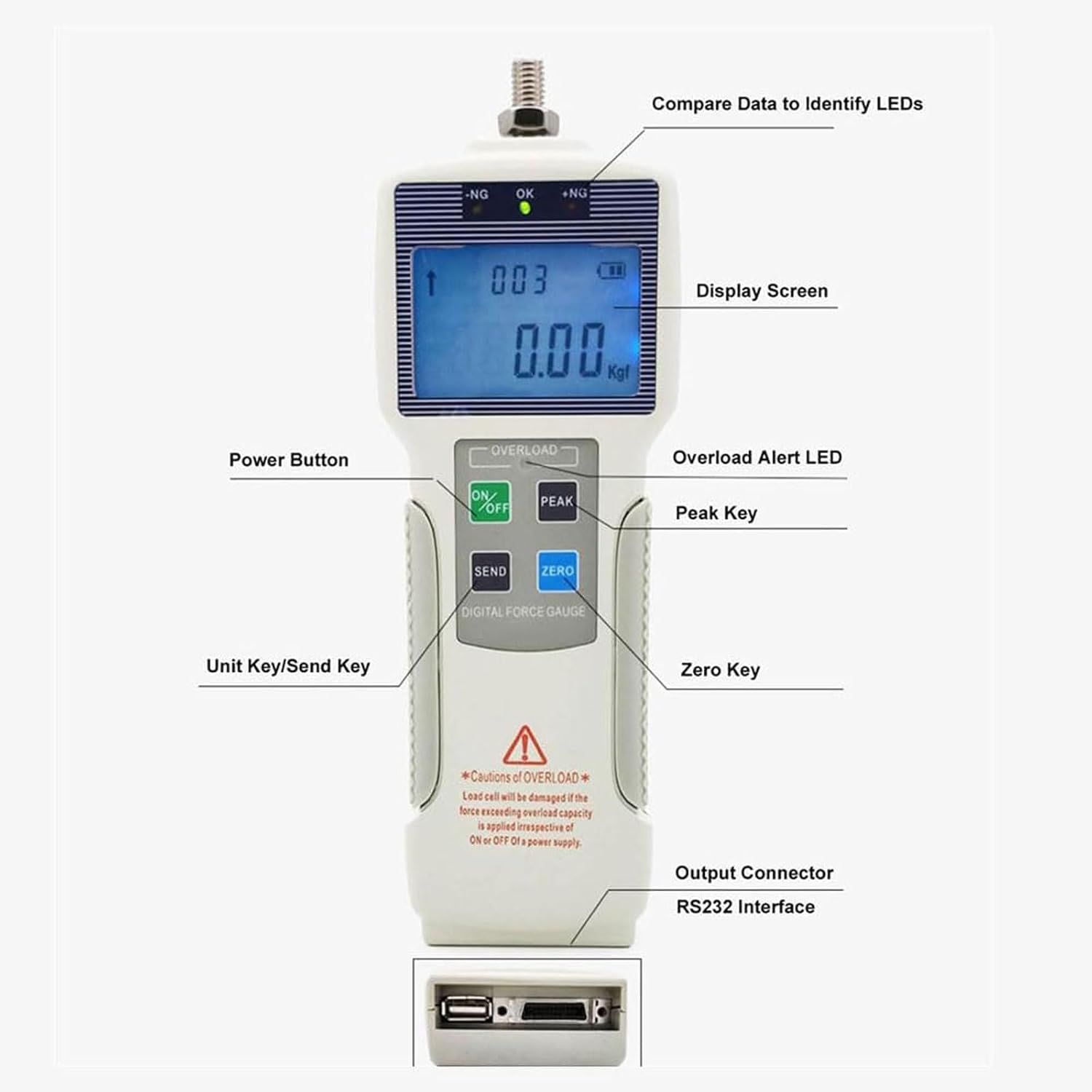

• 【Digital display】Automatic LCD backlight function allows you to view the readings more clearly. The housing of the tensile gauge is made of high-quality ABS plastic + metal, with high strength and good toughness
• 【Data connection】The digital thrust gauge can store up to 999 sets of peak test data. You can use the included data cable to connect a laptop and export real-time measurement data
• 【Purpose】Manual test benches are widely used in push-pull force tests, plug-in force or destructive tests, as well as electrical, hardware, automotive parts, light industry, machinery, textile and other industries
